Tektronix DSA70804B 8GHz 4 Channel 25 GS/s Oscilloscope / Serial Analyzer - CALIBRATED!
Tektronix DSA70804B 8GHz, 4 Channel, 25 GS/s Oscilloscope / Serial Analyzer - CALIBRATED!

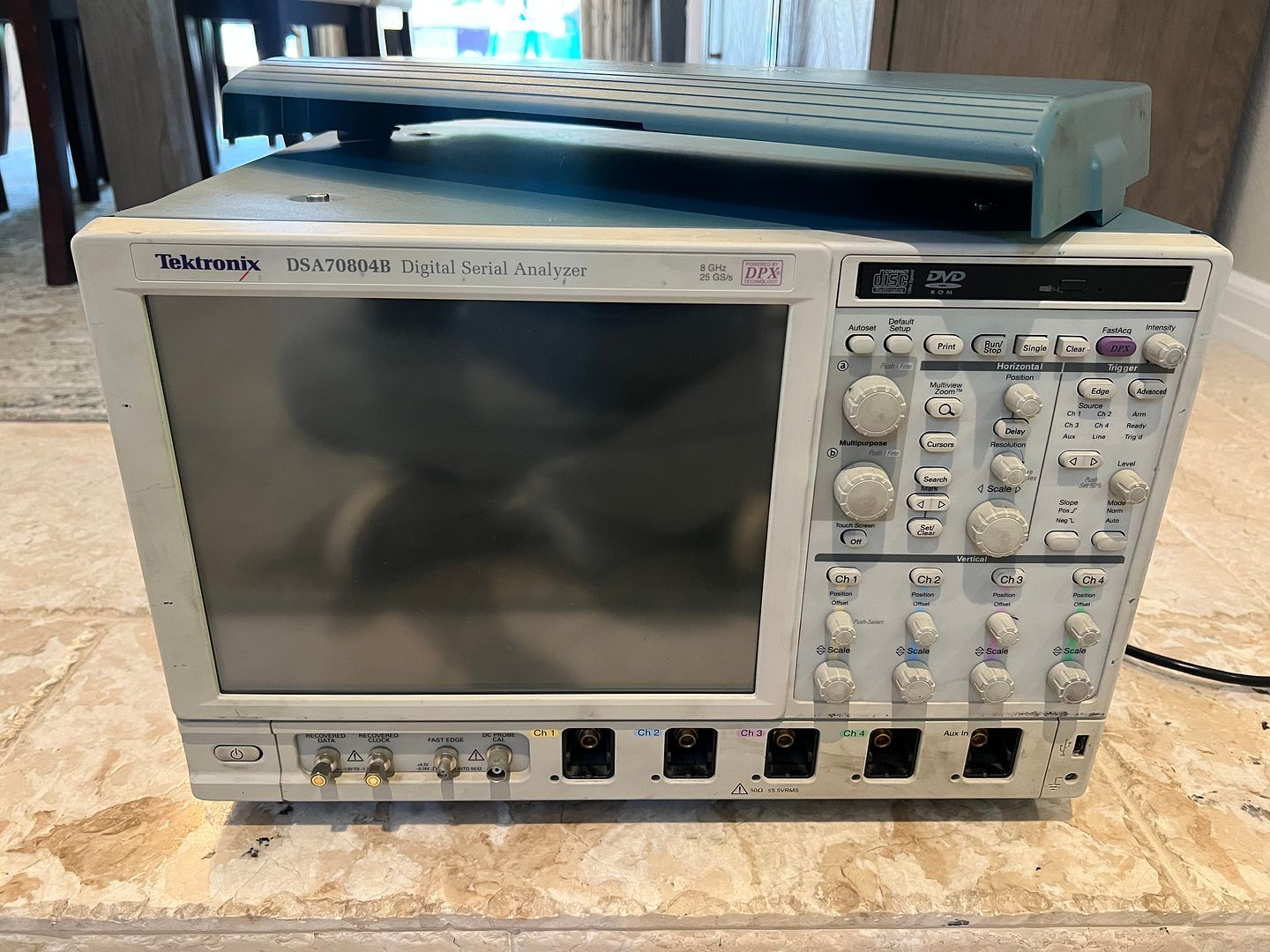

You are bidding on a Tektronix DSA70804B 8GHz, 4 Channel, 25 GS/s Oscilloscope / Digital Serial Analyzer. It is fully functional and will arrive with a fresh calibration performed by an ISO 17025 accredited lab.
THE LIST PRICE FOR THIS UNIT WITH THIS OPTION CONFIGURATION IS OVER $100,000 USD!
The DPO70000 and the DSA70000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry's best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs. The specialized DSA70000 Series provides a complete and dedicated solution to address the challenges of high-speed serial designs. The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your dayto- day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.

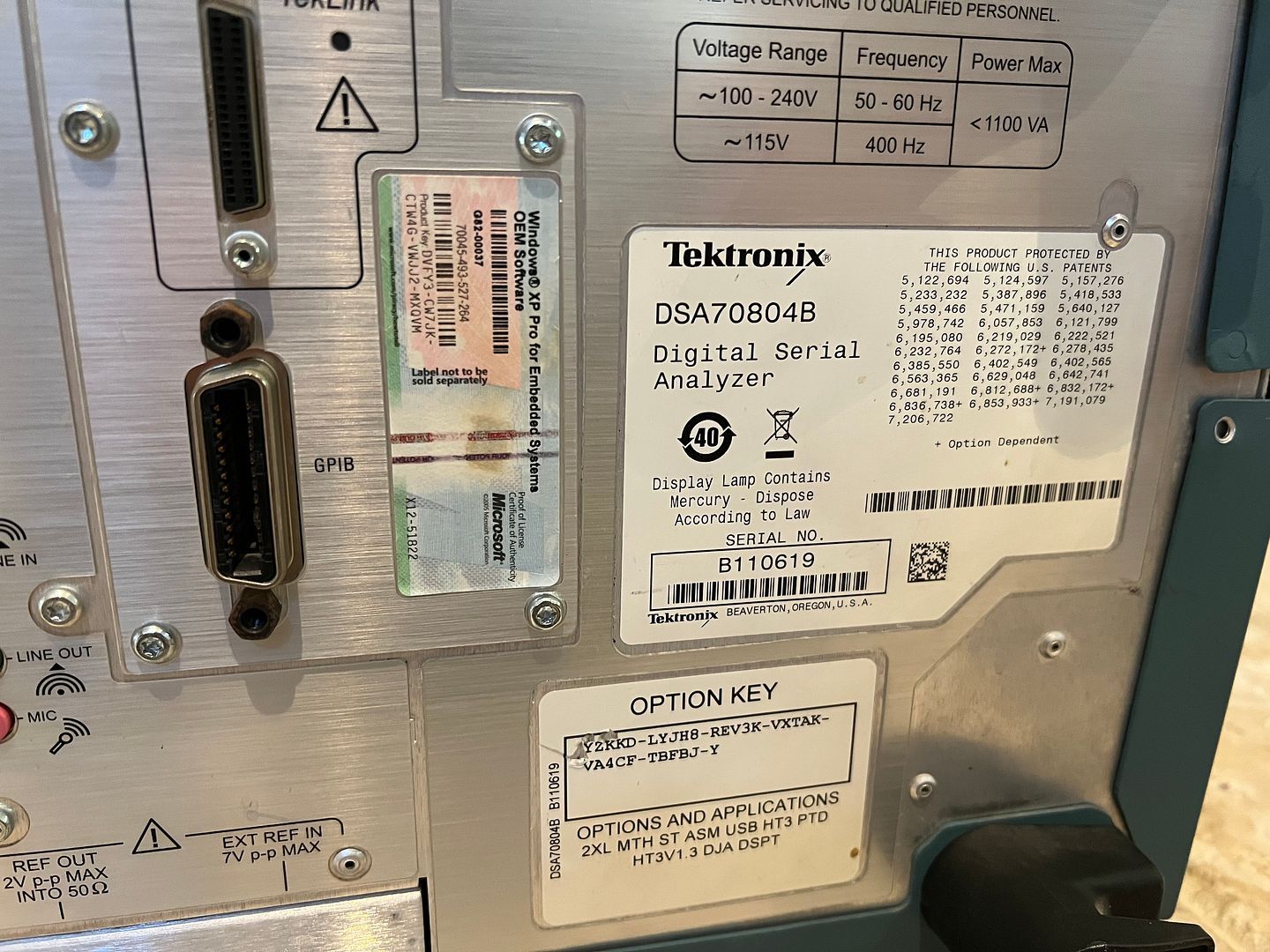

Features (For Reference Only) See back of the unit or the end of the Ebay description for installed option information:
8, 6, and 4 GHz Bandwidth Models
8, 6, and 4 GHz Digital Serial Analyzer Models with Dedicated Features for High Speed Serial Design and Compliance Testing
Up to 25 GS/s Real-time Sample Rate on All Four Channels
Up to 100 Megasamples Record Length with MultiView ZoomT Feature for Quick Navigation
>250,000 wfms/s Maximum Waveform Capture Rate
Pinpoint Triggering Provides the Most Flexible and Highest Performance Triggering, with 1400 Other Combinations to Address Virtually Any Triggering Situation
Serial Pattern Triggering up to 3.125 Gb/s with 8 b/10 b Protocol Triggering for Isolation of Pattern-dependent Effects
PCI Express, Serial ATA, FB-DIMM, SAS, Fibre Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0 Compliance Testing, Jitter and Timing Measurements, Power Measurements
12.1" Largest XGA Touch Screen Display in the Industry
MyScope Custom Windows Enhance Productivity
Right Mouse Click Menus for Exceptional Efficiency
Serial Data Compliance Testing, Decoding, and Protocol Triggering
OpenChoice Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis
Options Installed (check with us before purchasing):
2XL - 20 MEG Per Channel
MTH - Serial Mask Testing
ST - Serial Trigger
ASM - Advanced Search and Mark
USB - USB Port
HT3 - HDMI
PTD - Protocol Trigger & Decode
HT3V1.3
DJA - Jitter & Eye Diagram Tools Advanced
DSPT - Display Port

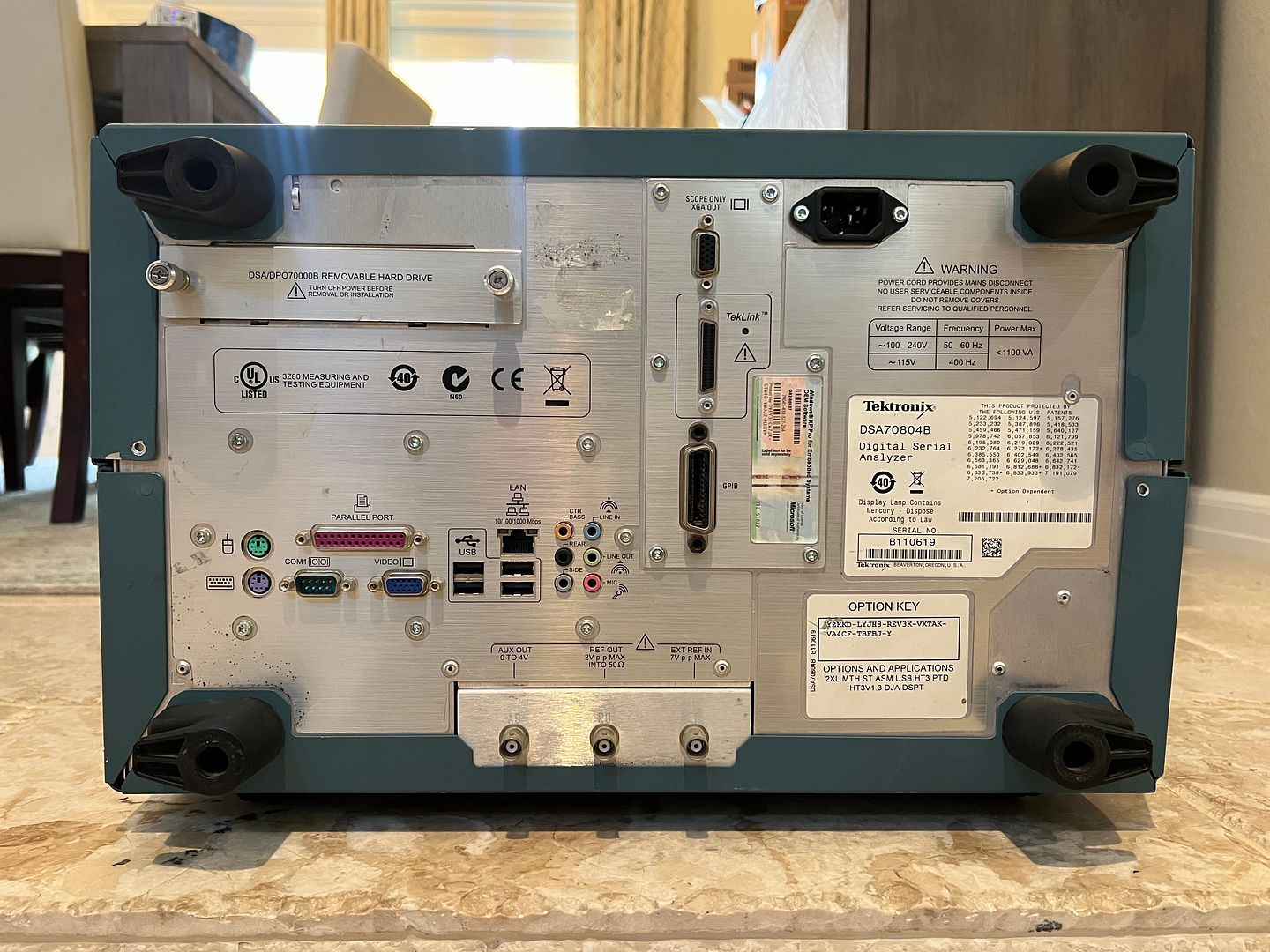

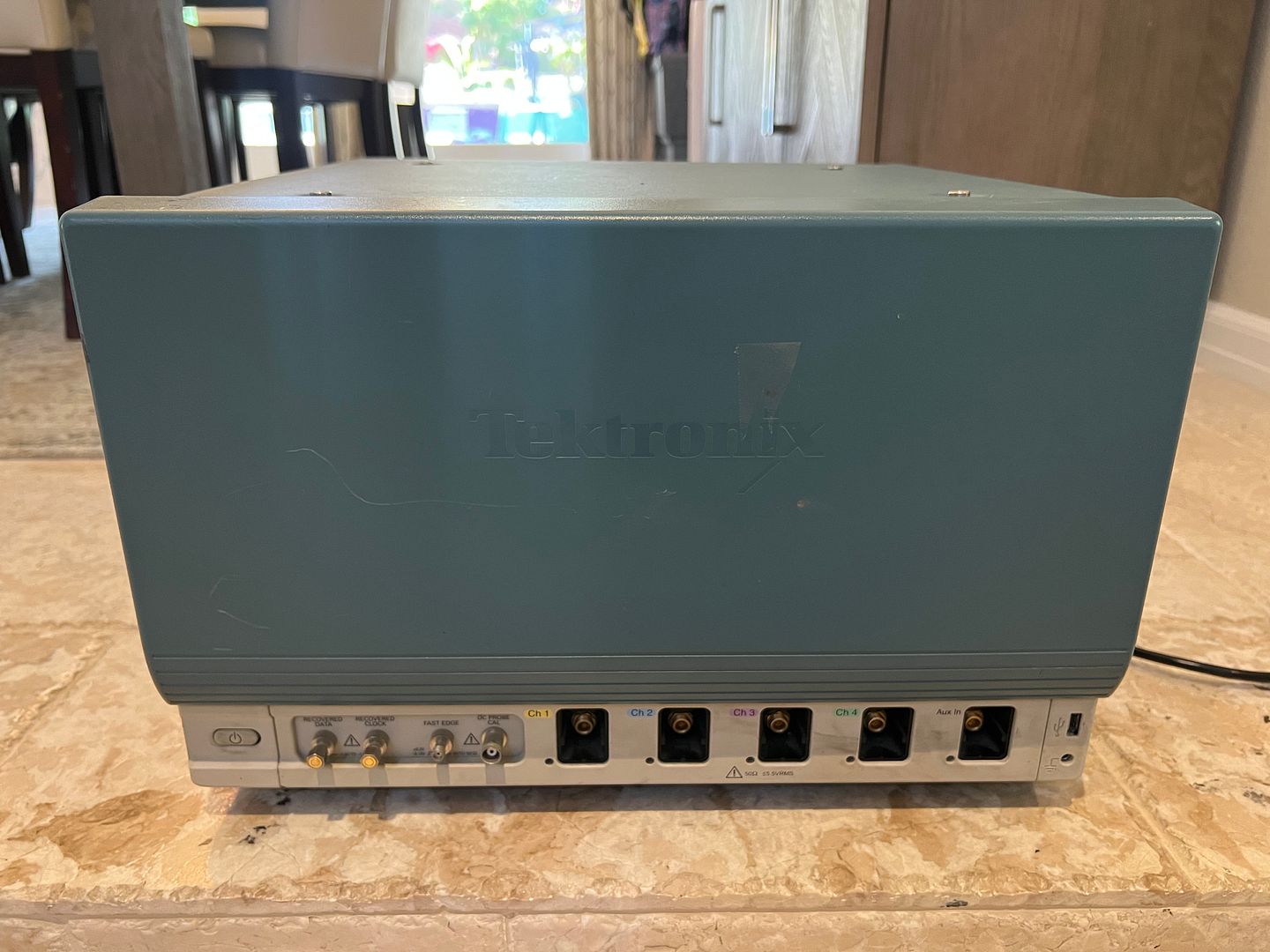

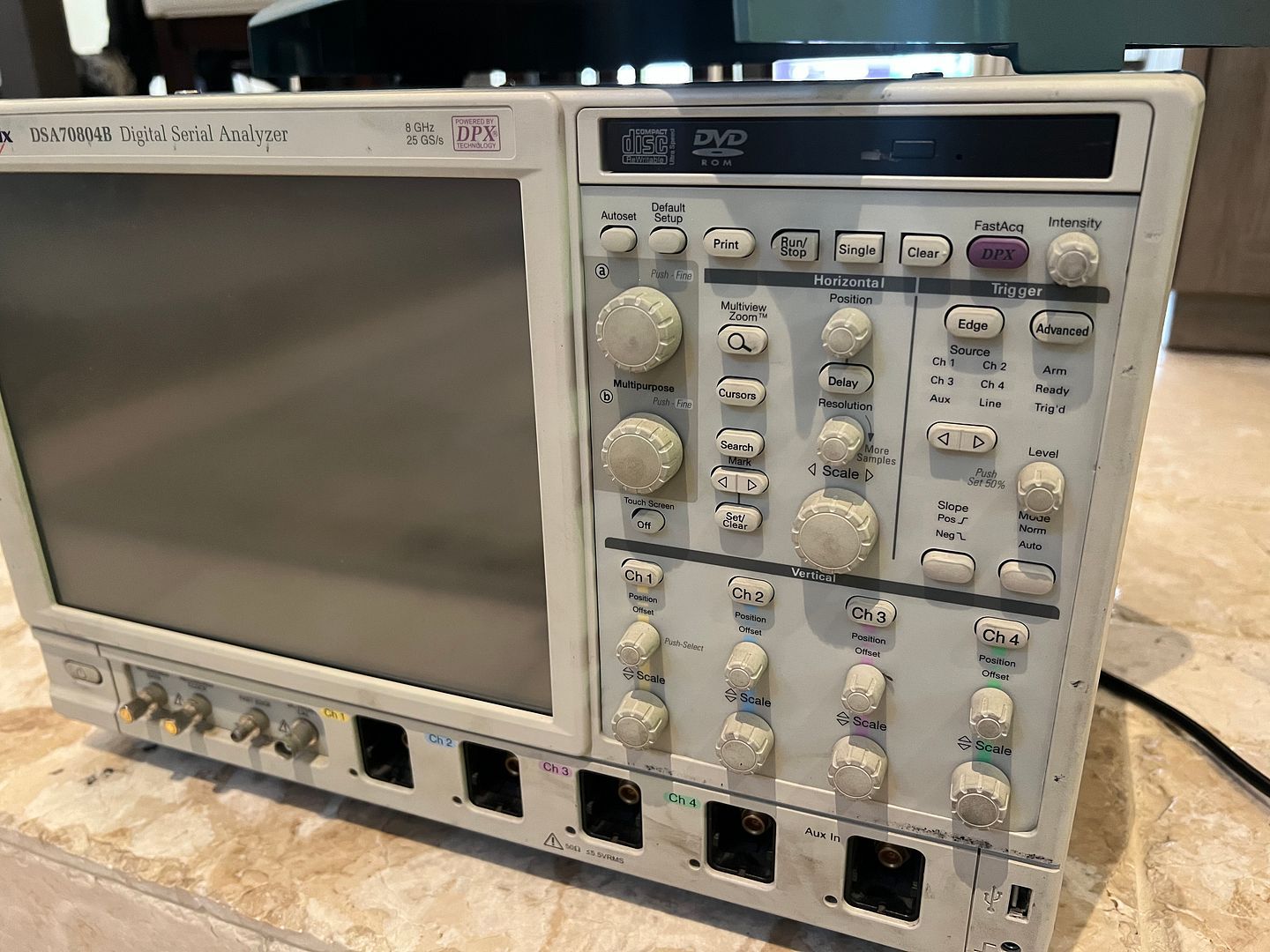

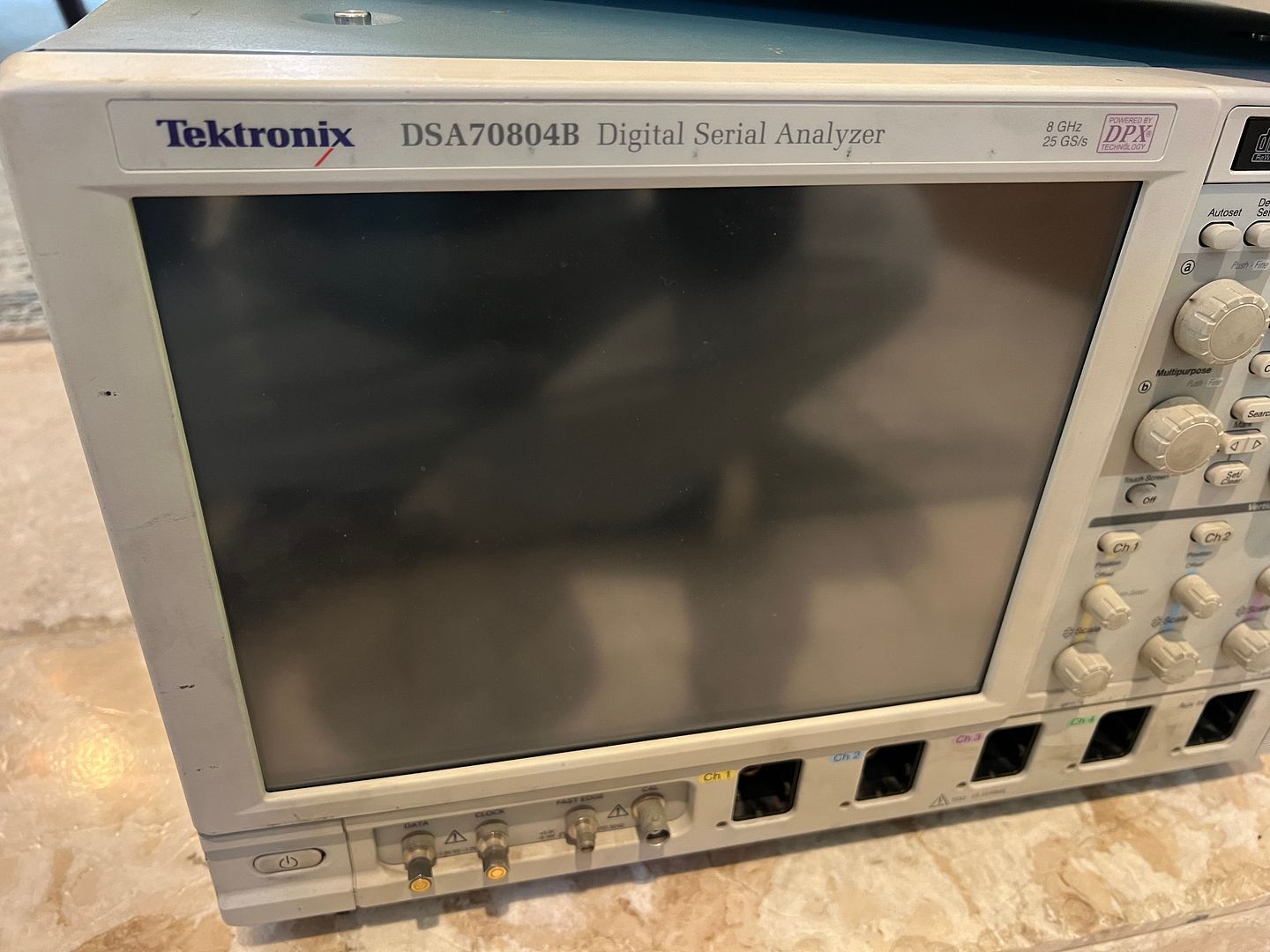

This unit is in good physical condition and is fully functional. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding
Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
