Keysight / Agilent 86115D 20/34 GHz High-Volume Optical Transceiver Test Module
Keysight / Agilent 86115D 20/34 GHz High-Volume Optical Transceiver Test Module w/ Options 102 & RRR - CALIBRATED!

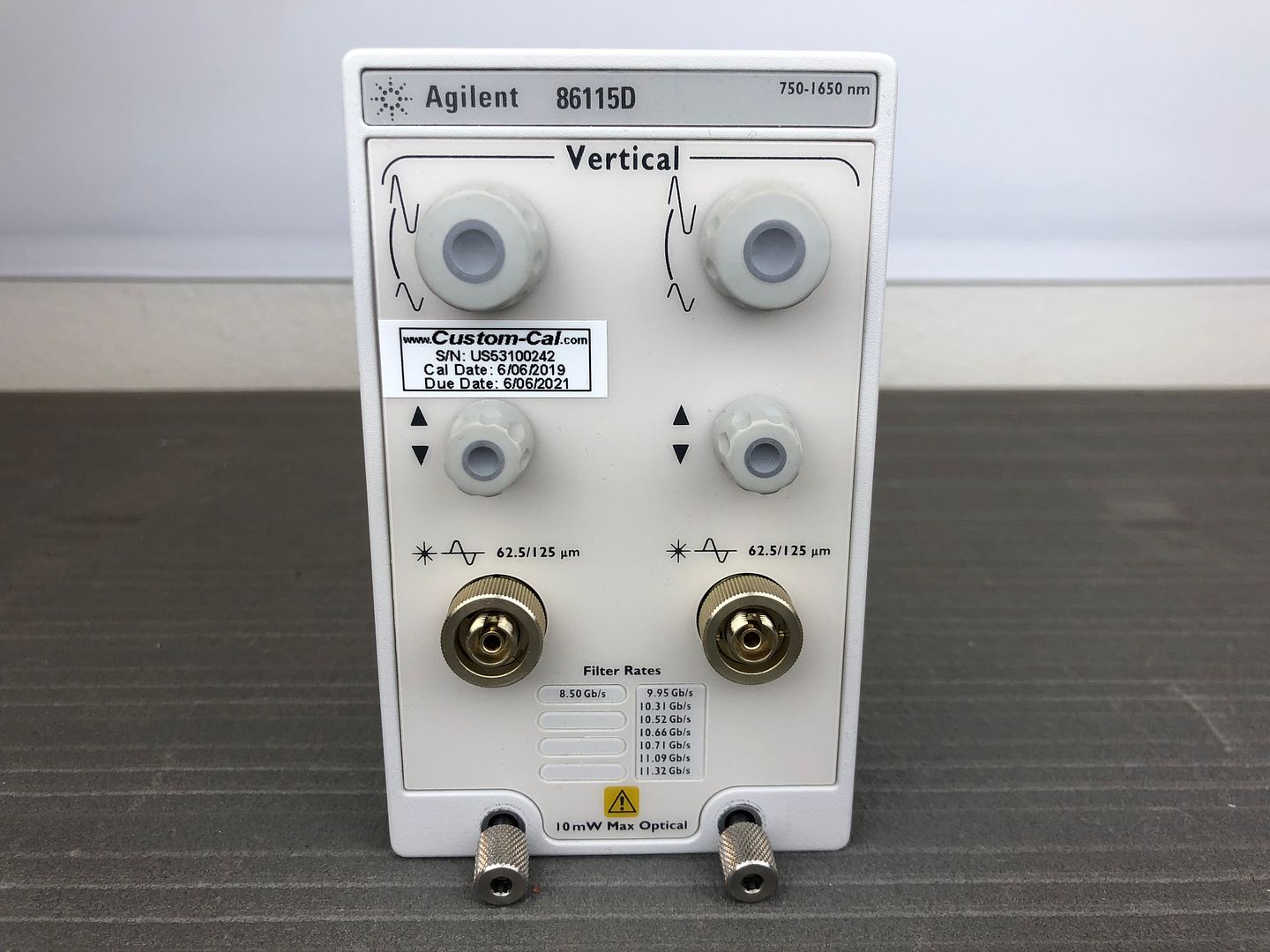

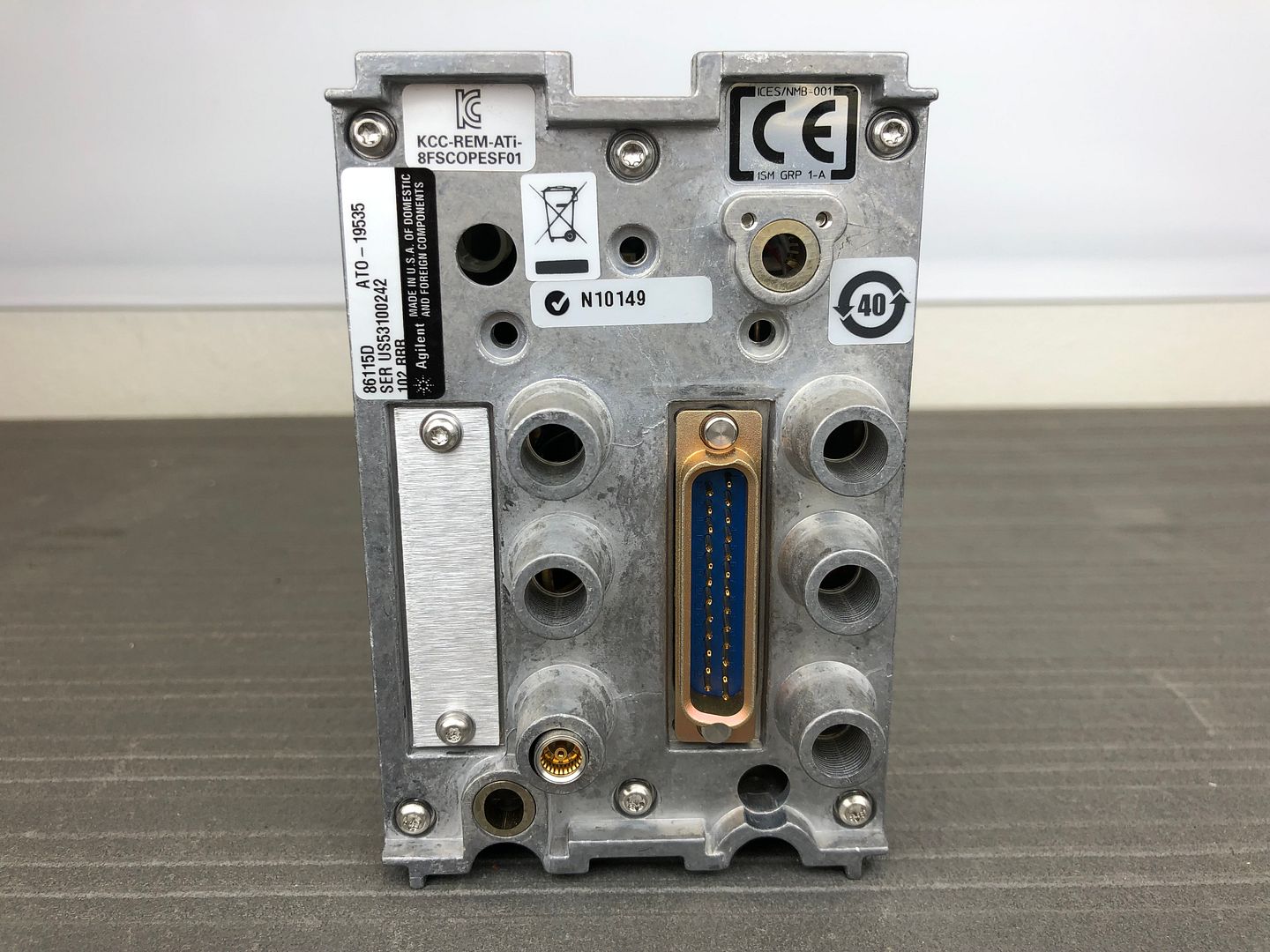

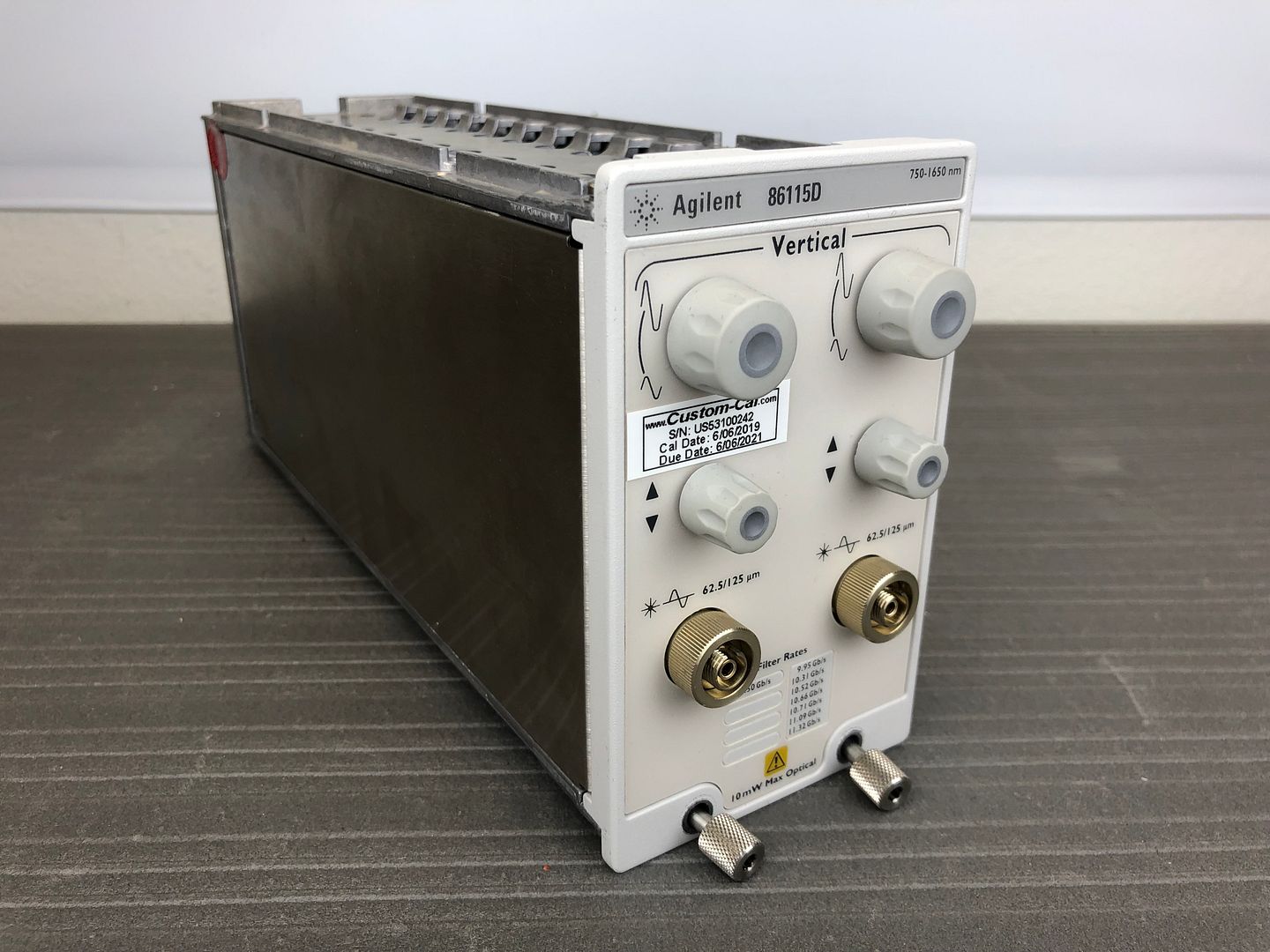

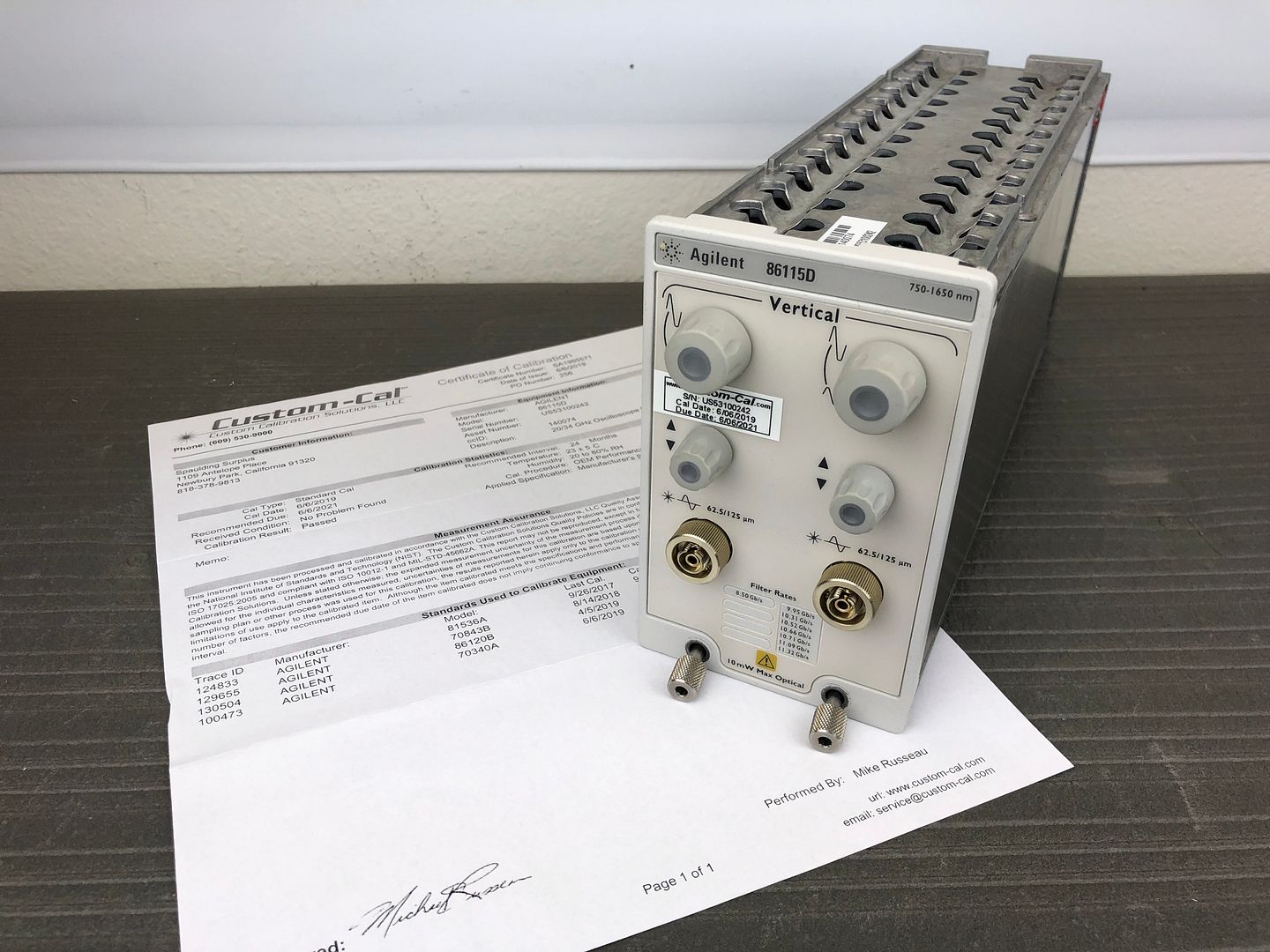

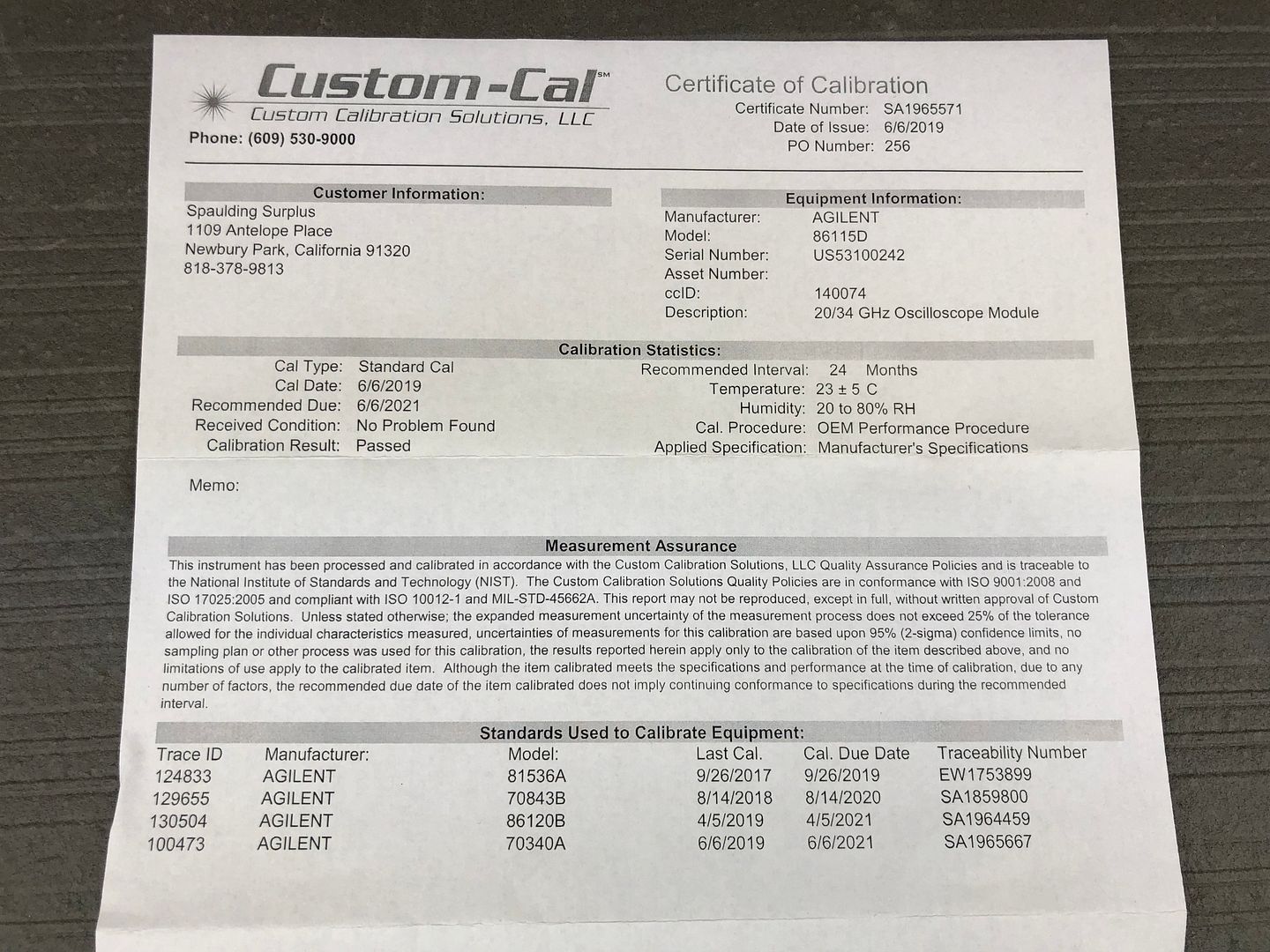

You are bidding on a Keysight / Agilent 86115D 20/34 GHz High-Volume/Parallel Optical Transceiver Test Module with Options 102 (Dual optical input, 8.5 Gb/s and 9.953 to 11.317 Gb/s filters) and RRR (Reference Receiver Response Data). It was recently calibrated by an ISO 17025 accredited lab and has not been used since that service. The Keysight 86115D with Option 102 has a current list price of 62K!
The 86115D is the ideal solution for high volume waveform analysis of transceivers operating at 8.5 Gb/s (8X Fibre Channel), 9.953 Gb/s (OC-192/STM-64), 10.3125 Gb/s (10 Gb Ethernet), 10.52 Gb/s (10X Fibre Channel), and 14.025 Gb/s (16X Fibre Channel) rates. The integrated optical receiver has an unfiltered bandwidth of 20 GHz. Option 282 provides a 34 GHz optical channel to allow compliance testing at 25.78 Gb/s (100 Gb Ethernet), 29.75 Gb/s (OTU4), and 28.05 Gb/s (32x Fibre Channel). A well-designed magnitude and phase response provides high-fidelity waveforms and accurate analysis of high-speed laser designs. Switchable reference receiver capability is available for eye-mask compliance testing at the rates mentioned above. The optical channel uses a broad wavelength photodetector operating from 750 to 1650 nm. The 62.5/125 µm connector is compatible with both multimode and single-mode fibers.
Key Features an Functions
- 20 or 34 GHz bandwidth, 750-1650 nm, for 8 to 28 Gb/s transceiver test
- Get reduced cost options for 8.5 to 11.3 Gb/s rates alone or 14.025 Gb/s alone
- Test a wavelength range of 750-1650 nm with 62.5 um input
- See better representations of your signals with characteristic RMS noise of 5 µW (10 Gb/s receiver), 8 µW (16xFC receiver), and 12 µW (25 Gb/s receiver)
- Option 004 provides an accurate and economical method to observe up to four transmitters in test schemes where sequential acquisition of waveforms is appropriate
This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes w/ a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.
Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding.
Need your unit calibrated by an ISO 17025 accredited lab prior to shipment? Not a problem. We work with numerous calibration and repair companies that can provide your required service at competitive prices.
